EOD Operator’s Toolkit



  • 1 x Blasting Cap Crimper,
  • 1 x Blasting Cap Box,
  • 1 x Mine Probe Handle,
  • 3 x Mine Probe Segments with knurling,
  • 3 x Mine Probe Tips- Titanium,
  • 3 x Mine Probe Tips – Delrin plastic,
  • 1 x Folding Knife with safety lock,
  • 1 x Surefire Flashlight,
  • 1 x Multi-tool with C4 spike.

All contained in Pouch as shown

Metal and Mine Detector

  • Hand held Metal Detector with proven effectiveness in Military and Humanitarian De-mining operations worldwide.
  • It is a highly sensitive detector using high speed pulse induction. It can detect all currently deployed minimum metal AP and AT mines.
  • Single part instrument. No separate parts of external cables.
  • Rugged, sealed water and weatherproof.
  • Uses 3 Std 3 D cell batteries with minimum of 12 hours on good alkaline batteries.
  • Easy to use and train operators.

Metal and Mine Detector


Mod 56


  • Power supply: 8 x 1.5v Batteries External Battery box and bag.
  • Emitting Frequency: 6.99KHz
  • Signal Frequency: 437KHz


Visual: Level Meter
Sound: 2” Speaker or Earphone
(Earphone not included)


Disc:  Ground Balance
Distinguish between Ferrous and Non Ferrous Metals


Disc Control; Ground Balance
Control; Tune Control;
Sensitivity Control; Zeroing Control; Discrimination Control.


25-30cm for US25cent Sm coil
40cm for US25cent Big coil

Detecting Depth Max

1.5 -2m Small coil
3 – 5m Big coil

Colour:  Black or Green

Packing: 1PC/Carton
82x32x16.5cm Weight 5kgs

Export: 4PC/Carton
86x34x68cm Weight 20kgs

EOD Bomb Disposal Suit


Currently in service through out the world with Bomb Disposal Teams. Designed to give highest protection level with Maximum comfort and flexibility to the user.

The ballistic levels and materials used in the suit are tested and evaluated to full quality assurance standard laid down by appropriate Government organizations.

The suit consists of the following items:

  • Jacket with attached collar
  • Trousers – adjustable
  • Breast plate
  • Groin plate
  • Helmet and visor
  • Air cooling blower
  • Transit Bag
  • Integral radio earphones and microphone in helmet.


  • Helmet V50 610m/s      Visor  V50 – 700m/s
  • Jacket and Trousers V50 600m/s
  • Blast plates V50 – 1000m/s
  • Full Spec Sheet Available.

Ballistic EOD Helmet


EOD Helmet is designed to go with EOD001 Suit. It is fully adjustable. Incorporated into the helmet are 2 headphones and a microphone and lead for VHF radio.

It also has an Air ventilation system which forces fresh air over top of helmet liner across visor and over operators face to keep visor demisted and operator cool. A filter canister can be added to clear air (NBC or Chemical).

Hardwire Communications


Where radio communications may activate explosives a hard-wire communications can be utilized.

Consists of:

  • 1 Base Station
  • 2 12v DC 4.5Ah rechargeable battery
  • 3 Headset with speakers and microphone
  • 4 External speaker with on-off switch
  • 5 Output for digital recorder
  • 6 Battery status indicator
  • 7 Built-in 220v AC charger with connecting cord
  • 8 Input for 12v DC charger
  • 9 Socket for connecting wire to reel
  • 10 Connecting wire to reel
  • 11 Reel with rewind guide 100m wire (with option for 125m) and connecting plug to fit into the remote controller on the EOD smock
  • 12 Reel comes with a slip-ring function allowing operator to be in communication throughout deployment and retrieval.
  • 12 Webbing guides are provided on the smock to lead the wire to the remote controller.

Cooling Suit


To be worn under the EOD Suit.

Consists of:

  • 1 One piece fire resistant garment with cooling tubes and external connectors.  It is worn as close to the body as possible to obtain maximum benefit.
  • 2 Head hood with connectors to connect to main garment.
  • 3 External pump and ice bottle container in a self contained carry bag attached to left side of smock with straps and Velcro
  • 4 Self contained NiCad battery power supply interchangeable with suit power supply
  • Running time at maximum flow rate 2.5 hours

De-mining Apron with Shin Guards


The De-mining Apron was developed and field tested in difficult and harsh environments.  The Apron provides a large area of frontal protection together with the De-mining Visor.  It is durable, rugged and can be serviced in the field.


  • Outer cover  – Cordura
  • Inner           – Aramid

Protection Specifications

  • Manufactured to IMAS 10.30 Specifications


  • 4kgs


  • Customer specification

De-mining Vest


The De-mining Vest is designed for maximum comfort and as little hindrance as possible for the user, but still providing protection to all the vital parts of the body. Protection is optimized when worn with De-mining Visor.

Provides Frontal Protection against Anti-Personnel mines, Groin flap standard.


  • Outer cover  – Cordura
  • Inner           – Aramid

Protection Specifications

  • Manufactured to IMAS 10.30 Specifications


  • 2kgs


  • Customer specification

De-mining Visor


The De-mining Visor comes with an adjustable cradle for individual fit and interchangeable brow pad for comfort and hygiene.  It has ventilation slot for demisting and ventilation for harsh environments.
Designed to work with De-mining Apron or Vest


  • Untreated 5mm Poly carbonate Visor with cradle and Protective anti-scratch cover


  • 1.25kg

Protection Specification:

  • Manufactured to meet IMAS 10.30

De-mining Helmet with Visor


The De-mining Helmet with Visor provides full fragment and blast protection from Anti-personnel mines for the entire head. Designed to work with the De-mining Apron and Vest.


  • GRP moulded shell with Cradle
  • Untreated 5mm Polycarbonate Visor


  • 2kg

Protection Specification:

  • Manufactured to meet IMAS 10.30


  • Customer specification

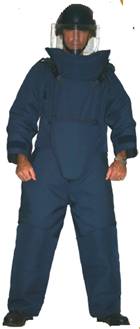

Search Suit


The Search Suit gives a high level of Protection and maximum mobility. Used in any sweep search for possible IEDs or where potential ballistic threat exists. Protection level can be altered by either inserting ceramic tiles in front and back or attaching blast plates to front.


  • Consists of  Trousers, Jacket and Ballistic Helmet with Visor


  • Outer cover  Fire retardant treated polyester rip stop
  • Inner – Aramid


  • Suit – V50 450m/s
  • Helmet – V50 450m/s
  • Visor – V50 450m/s
  • Suit with Ceramic Plates – V50 1200m/s+
  • Suit with Blast Plates – V50 1000m/s +


  • 16.5kg including Helmet and Visor


  • Navy Blue, Olive Drab and Black

EOD Shield


The shield is designed to be used by those requiring protection from small anti-personnel mines during mine clearance operations.

The shield has two retractable legs that can be placed into the ground to support the shield in the upright position unaided, allowing the operator complete use of his hands.


  • Size: 1300mm x 760mm
  • Protection: V50 of 600m/s
  • Weight: 23kg

Bomb Container


Developed to enable inexperienced operators to remove IEDs to a safe location where it can be examined or destroyed. It can provide explosion suppression capacity ensuring no damage to towing vehicle, trailer and surrounds.

Mod 1 with Wheelbarrow, protective criteria TNT eqv 1kg

  • Inner Diameter     484mm
  • Outer Diameter     562mm
  • Height                 600mm
  • Weight                150kgs (without trailer)

Bomb Container


Mod 2 with two wheel trailer, protective criteria TNT eqv. 2kg

  • Inner Diameter      564mm
  • Outer Diameter      666mm
  • Height                  700mm
  • Weight                 250kgs (without trailer)

Bomb Container


Mod 3 with four wheel trailer, protective criteria TNT eqv. 3kgs

  • Inner Diameter     950mm
  • Outer Diameter   1100mm
  • Height                  900mm
  • Weight                 920kgs (without trailer)

Hook and Line Kit


Mk 1 Hook and Line Kit

Provides an EOD Technician with a wide range of equipment that can gain access, remove, manipulate and handle suspect devices inside buildings, vehicles or open areas.   The kit can be used to transfer the device from the scene to an open space where it can be better managed.


  • Reel, for Hook and Line Kit,
  • Hook, Small Single Plain
  • Hook, Medium Single Plain
  • Hook, Large Single Plain
  • Hook, Small Single Barb
  • Hook, Medium Single Barb
  • Hook, Large Single Barb
  • Hook, Double Plain
  • Hook, Double Barb
  • Adjustable Pole
  • Pulling Handle
  • Belt Sling
  • Snatch Blocks
  • Eye

Length     68.5cm
Width      13cm
Height     49cm
Weight     7kgs
